Model NO.: TB-RH-PC
Colour: Blue, Red, Yellow etc.
Working Temperature: -40 to 115 Degrees Centigrade
Trademark: Standards
Transport Package: Carton
Specification: SAE J2044
Origin: Hebei Province, China
HS Code: 3917400000
Pressure SAE J2044 Automobile Fuel Hose Quick Connect for Tank
 Material Of Quick Connector| Parts | Material | Supplier | Application | |
| Body | PA12 GF30 | ARKEMA | EVONIK | Fuel |
| PA66 GF30/35 | BASF | DUPONT | Fuel Steam | |
| PA6/6T GF25 | BASF | Â | HT Fuel | |
| PA9T GF30 | KURARAY | Â | HT Fuel | |
| Locking Spring | PA11 | ARKEMA | Â | Fuel |
| PA66 | BASF | DUPONT | Fuel, Steam | |
| Securing Ring | PA12 GF30 | ARKEMA | EVONIK | Fuel,Steam,Urea,A/C , Â Â Â Â Â Â Â Â Â Power Steering System |
| PA6/6T GF30 | BASF | Â | HT Fuel | |
| PA66GF 30/35 | BASF | Â | Fuel Steam | |
| O Ring | FKM/FVMQ/ Â HNBR/AEM |
HUTCHINS ON | GMORS | Fuel,Steam,Urea,A/C Â Â Â Â Â Â Â Â Â Â Power Steering System |
Innovative, secure, and quick, our quick connect fittings made of synthetic material are suitable for most media carrying lines. Be it fuel, oil vapor, water cooling, or air carrying lines. We offer the ideal means of connection. These quick connectors are specially suited to being matched up with the automotive pipe system.
The design and production of quick connector are strictly in accordance with SAE J2044-2009 Quick
connect coupling specification for liquid fuel and vapor or emissions systems. If the product does not meet customer needs, we can design and manufacture according to customers' requirements. Plug-in and self-locking structure enables connecting and disconnecting more quickly and easily. The space required for the operation is only the width of a finger on both sides. These features ensure that quick connectors can be high-density arranged and an increase in customer design flexibility.
3. Security of quick connector
Quick connector with double sealing rings radial sealing structure, modified rubber o-rings used, mainly for fluid physics chemistry, custom, anti-aging, corrosion, and swelling;
outer o-rings are separated by the intermediate spacer ring. Corresponding space on the two sealing rings, rubber substrate bonding does not occur, the outer synthetic rubber o-rings used, increased mechanical properties. Preventing air aging. Sealing ring and spacer ring through the outer ring of elastic clamping device securely fastened in shell will not result in phenomena such as ring falls of, and shift. Great seal security is guaranteed.
4. Working environment of quick connector
Gasoline and diesel fuel delivery systems, ethanol, methanol or natural gas delivery systems or their vapor venting or evaporative emission control systems
Â
| Working pressure | 5bar (72psi) |
| Working pressure in Vacuum |
-0.55bar (-7.2psi) |
| Working temperature | -40-115ºC, short time 150ºC |
5.Quick Connector advantagesÂ
· Fast assembly without tool -> time and cost reduction
· robot assembly possible -> automated processes
· compact building method -> employment in extremely close installation conditions possible
· integrated seal - > optimal tightness
6.Quick Connector Applications in the automotive industry
Can be used to make both line-to-line or line-to-equipment connections.
· Fuel feed / return linesÂ
· tank breathing
· Ventilation lines
· Oil cooler lines
· Vacuum control linesÂ
7. The Type of Quick Connector
| 7.1Â button |
Two button  |
One button |
|
7.2 fir tree  |
The fir tree endform with or without o-ring Connect nylon pipe - pipe size from 3 . 35X4 . 5 to 14 . 35X16 35 | Endform with or without rib lines Connect rubber hose ,hose size from ID 3 to 16mm |
8.Connect & Disconnect Operation Method Of Quick Connector
 Quick connector is made up of body, in o-ring, out o-ring, spacer ring, securing ring and locking spring. When a mating tube end piece inserts the connector, as locking spring has certain elasticity, Tie clip fastener to connect two connectors together, and then pull back to assure complete connection; Repair or remove the quick connector is different. First advance push the male connector and press the clip button, lock expansion, you can easily pull out the connector; please note, SAE 30th heavy oil lubrication should be used before Reseat

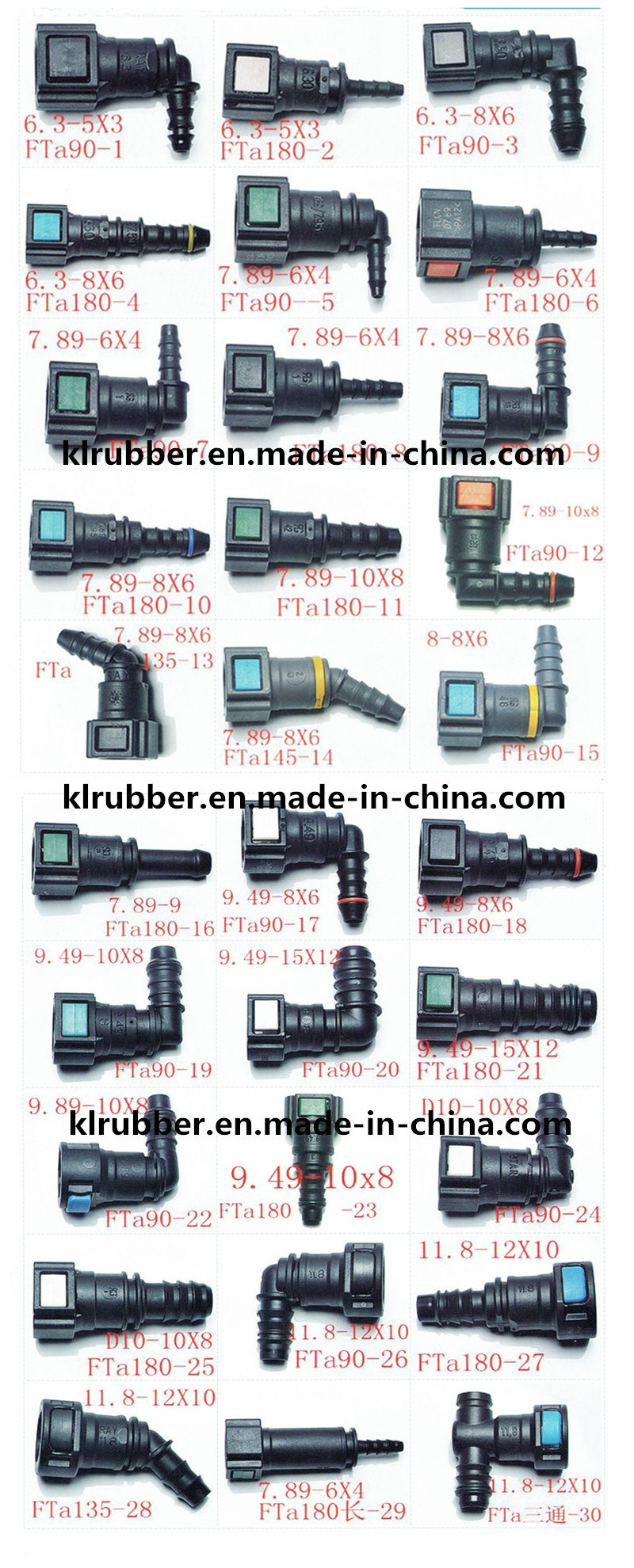

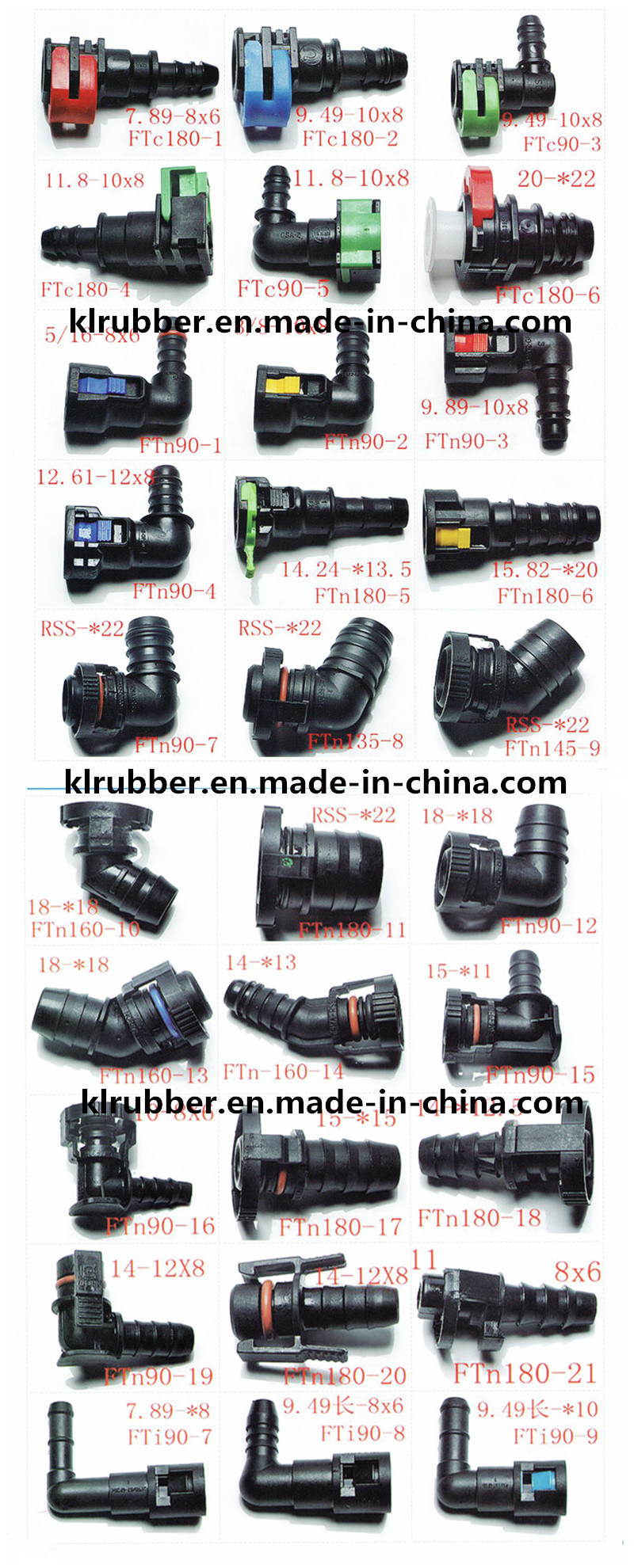

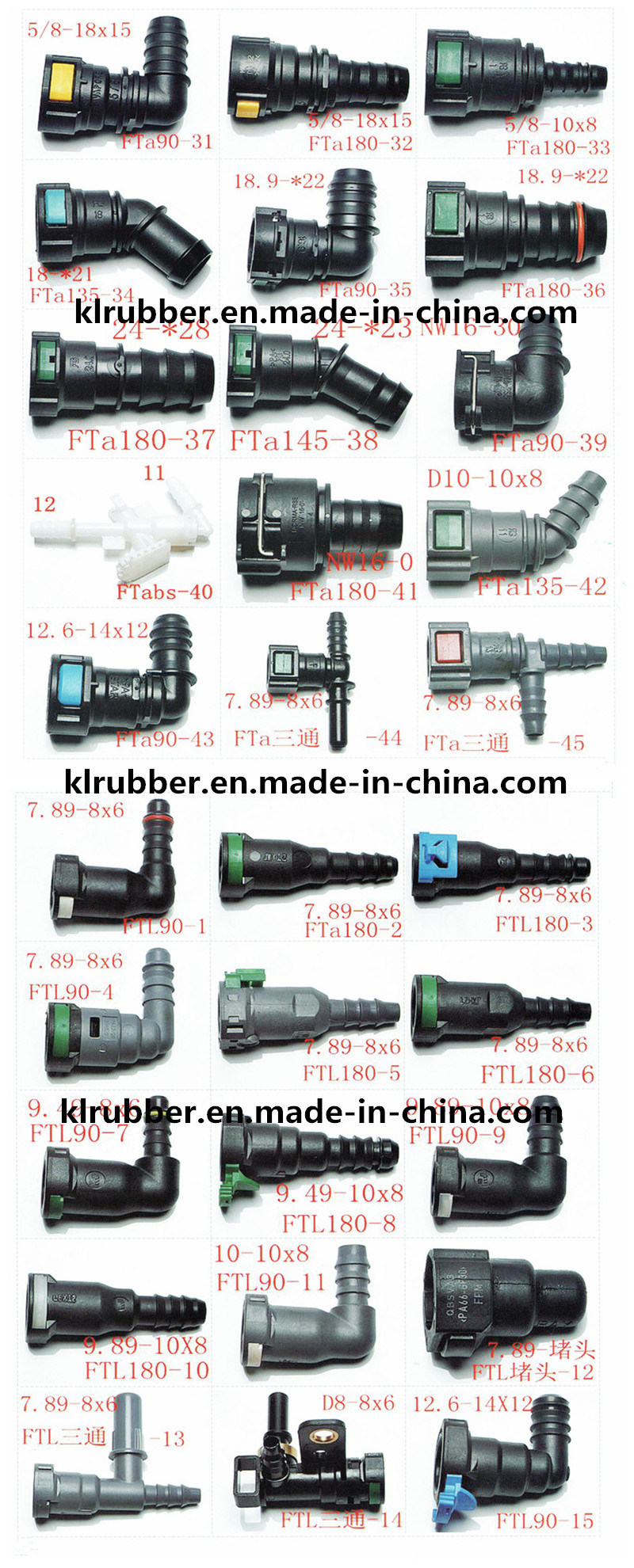

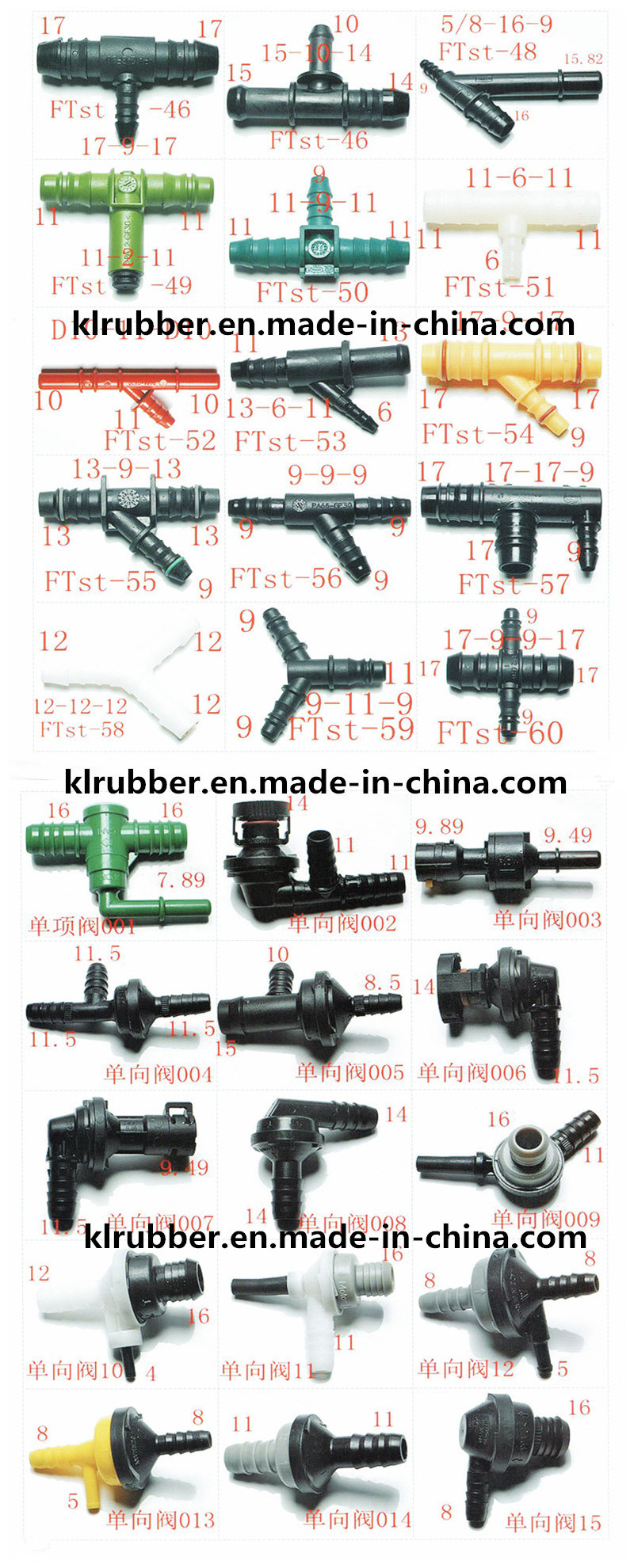

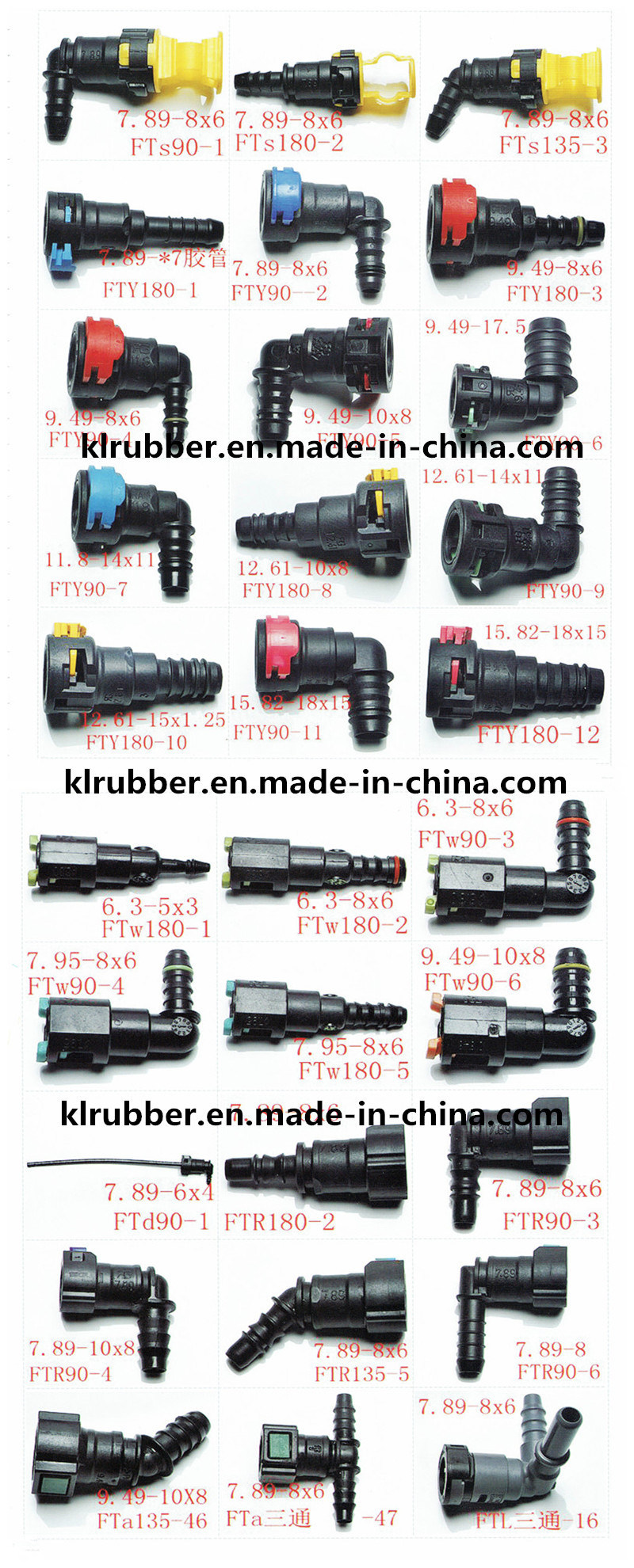

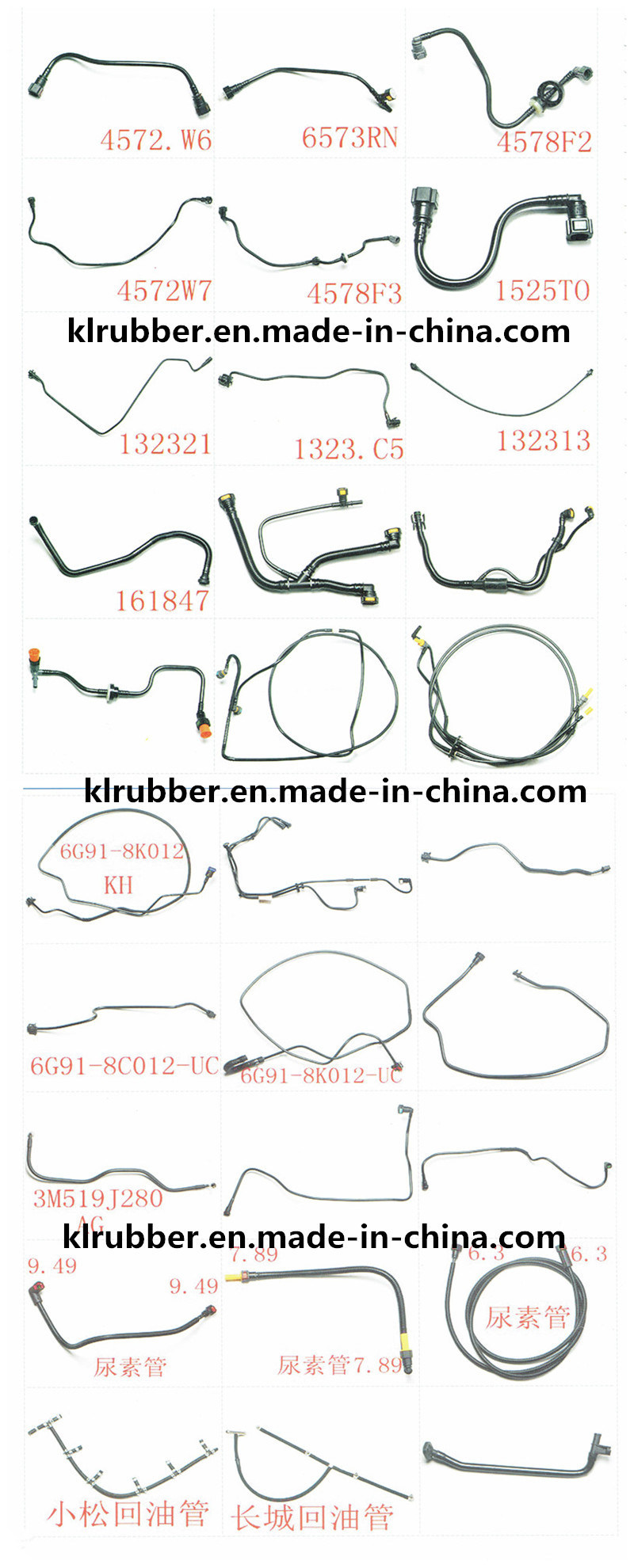

Our Fuel Line Quick Connector Catalog
